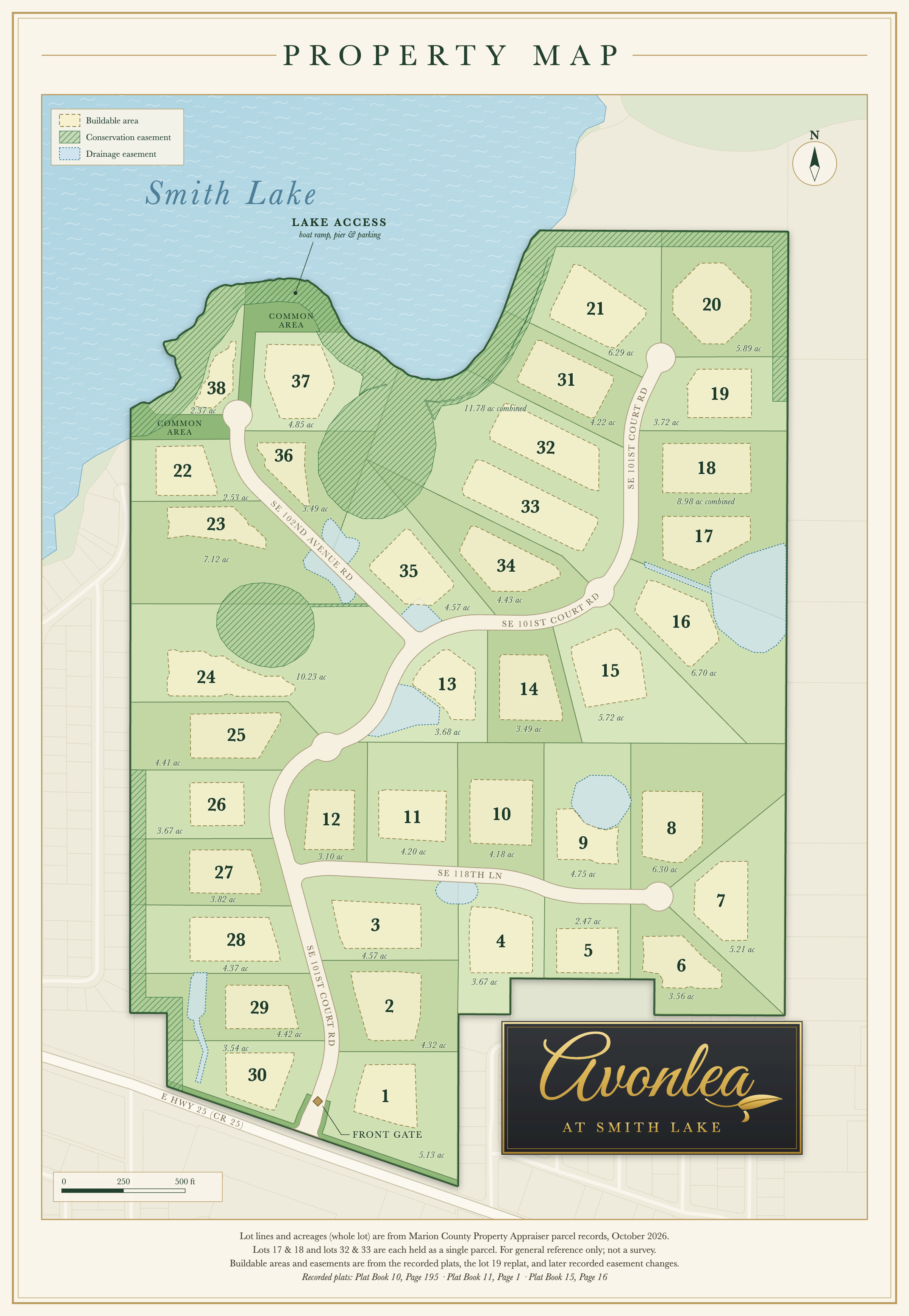

Map of Avonlea at Smith Lake. Lots 1 through 38 are shown with their acreages along SE 101st Court Road, SE 102nd Avenue Road, and SE 118th Lane, and each lot shows its buildable area from the recorded plats. Conservation easements are hatched in green and drainage easements are shaded blue. Smith Lake and the lake access common area are at the north end, and the front gate is on E Hwy 25 at the south end.

Select the map to open it full size, or download a printable copy (PDF).

About This Map

  • Lots: Avonlea is about 192 acres by the recorded plats: 152.6 acres in Phase 1 and 39.6 acres in Phase 2. It has 38 platted lots, held as 36 home sites because two pairs of lots are combined. Lot lines and acreages come from Marion County Property Appraiser parcel records as of October 2026. Each acreage is for the whole lot.
  • Buildable areas: The cream areas with dashed outlines are the part of each lot that may be developed, traced from the recorded plats of Avonlea Phase 1 (lots 1 through 30) and Phase 2 (lots 31 through 38). Lot 19 is shown as redrawn by its 2022 replat.
  • Conservation easements: The green hatched areas are conservation easements held by the St. Johns River Water Management District. They must stay in their natural state: no clearing, grazing, riding, or dumping. They are shown as they stand today, which means the easements on the plats, plus the additional strips recorded in 2008 and 2024, and without Conservation Easement E on lot 24, which was released in 2024.
  • Drainage easements: The blue areas with dotted outlines are the drainage easements shown on the plats.
  • Combined lots: Lots 17 and 18 are held as a single parcel, as are lots 32 and 33. Each pair is shown without a dividing line and with one combined acreage.
  • Roads: SE 101st Court Road, SE 102nd Avenue Road, and SE 118th Lane are private roads owned and maintained by the HOA.
  • Common areas: The lake access common area on Smith Lake has the boat ramp, pier, and parking lot. A second common area lies along the lake just to the west.
  • Entrance: The front gate is on E Hwy 25 (County Road 25).

Recorded Plats

This map is for general reference only and is not a survey. The recorded plats govern, and they show details this map does not, including exact dimensions, utility and access easements, and the flood zone along the lake. Easement outlines here are accurate to within a few feet at best. Copies of the plats are below, and they can be verified by book and page in the Marion County Clerk’s Official Records search.
